US Patent: 1,255,868
|
| Magazine Back for Cameras
|
|
Patentee:
|
|
| William F. Folmer (exact or similar names) - Rochester, Monroe County, NY |
|
|
Patent Dates:
|
| Applied: |
Dec. 18, 1913 |
| Granted: |
Feb. 12, 1918 |
|

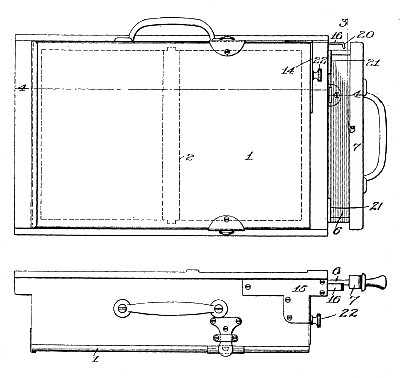

Patent Pictures:
[
1 | 2
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
|
|
Description: |
| Abstract:
My present invention relates to photography and in particularly to photographic cameras, as it has for its object to provide came or magazine wherein a plurality of plates are shifted one at a time from a storage chamber to an exposing chamber and successively exposed and to provide such back with simple mechanism for counting the plates when so shifted and exposed, and for indicating which plate is in position tor exposure. A further object of the invention is to provide means Where by the exposing mechanism is automatically locked when the last plate has been shifted and exposed. in order to bring this fact to the attention of the operator and to prevent an inadvertent second exposure of the last plate, it being contemplated in the preferred form or the invention that the exposing and shifting functions be embodied in one element and the shunting and locking functions to these and other in certain combinations of parts.
Claim:
The combination with a casing and an actuator extending through a wall there of, of a counter wheel mounted on said wall within the casing to turn in a plane at right angles to the actuator, a plunger movable parallel with the latter and adapted to be to one position and actuating connections between the plunger and counter wheel. |
|
