US Patent: 1,064,362
|
| Cane Grinding Mill
|
|
Patentees:
|
| Frank A. Monroe, Jr. (exact or similar names) - Cleveland, Cuyahoga County, OH |
| Nicolas A. Helmer (exact or similar names) - Cleveland, Cuyahoga County, OH |
| Assignees: |
|
Dyer Co. - Cleveland, Cuyahoga County, OH |
| Manufacturer: |
|
Dyer Co. - Cleveland, Cuyahoga County, OH |
|
|
Patent Dates:
|
| Applied: |
Aug. 17, 1912 |
| Granted: |
Jun. 10, 1913 |
|

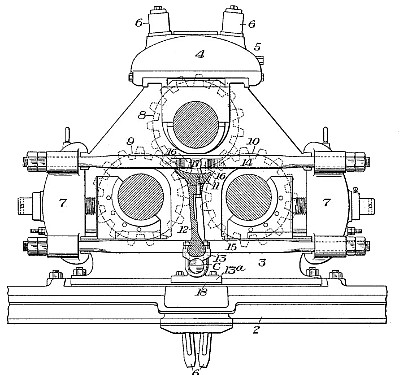

Patent Pictures:
[
1 | 2
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
|
|
Description: |
| Abstract:
Our invention has relation to crushing mills, particularly for the treatment of sugar cane and the life, and has for an object the provision of novel means for the exact and facile adjustment of that member of the mill which is known as the "turn plate," "dumb turner," or "trash knife," hereinafter referred to as the turn plate. A further object of the invention is to provide means whereby the frame bolts holding the side caps of the mill frame in position, may be utilized for securing the adjustment of this turn plate.
Claim:
In a crushing mill, a mill frame housing having side caps, transverse baits securing the side caps, and a turn plate support having projections engaged by some of said bolts, the latter forming means for actuating and holding the turn plate support. |
|
