US Patent: 780,406
|
| Panoramic Camera
|
|
Patentee:
|
|
| Frederick W. Brehm (exact or similar names) - Rochester, Monroe County, NY |
|
|
Patent Dates:
|
| Applied: |
Oct. 17, 1904 |
| Granted: |
Jan. 17, 1905 |
|

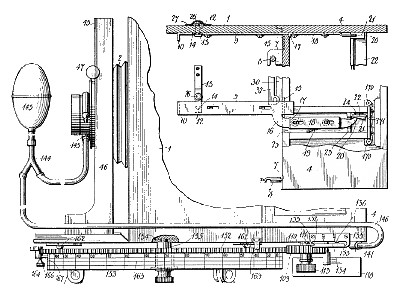

Patent Pictures:
[
1 | 2 | 3 | 4 | 5 | 6
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
|
|
Description: |
| Abstract:
My invention relates to panoramic cameras and its objects are to effect improvements in the construction and arrangement of devices for raising and lowering the lens; for moving the camera with respect to its center of revolution; for starting and stopping the revolving camera; for supporting, adjusting, and rotating the supply -roll; for supporting, locking, and rotating the feed-roll, including the particular form of motor employed; for locking the two camera-boxes together and for opening the door in the exposure-passage; for automatically closing that door before the boxes can he separated; for indicating the box movement in degrees during any revolution or given portion thereof and to provide an adjustable auxiliary cushion-stop for the revolving hox; for securing the propelling-pin- ion upon its shaft; for clamping the film upon the feed-roll and for gaging its position vertically thereon, and to produce a folding ground-glass screen having indicating-marks whereby the image may he located with respect to the width of the film, and to fashion a removable film-box having an exposure-passage disposed with relation to the folding ground glass.
Claim:
In a camera, a ground-glass plate divided into portions pivotally connected with each other and adapted to fold one portion upon another. |
|
