US Patent: 420,147
|
| Cane Mill
|
|
Patentee:
|
|
| William O. Dunlap (exact or similar names) - George's Creek, Somervell County, TX |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
Aug. 08, 1889 |
| Granted: |
Jan. 28, 1890 |
|

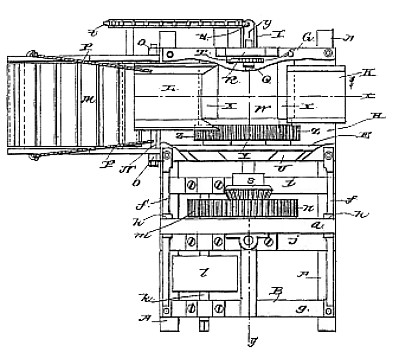

Patent Pictures:
[
1 | 2 | 3 | 4 | 5 | 6
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
|
|
Description: |
| Abstract:
My invention relates to improvements in cane-mills; and it consists in certain novel features hereinafter claimed and described.
Claim:
The combination of the frame, the housing mounted thereon, the standards on the frame, the crossbar ci, supported by said standards, the braces extending between the outer end of the frame and the housing and provided with notches engaging the ends of the crossbar di, the driving-shaft mounted in the frame, the crushing-rolls in the housing, and intermediate gearing between the driving-shaft and the crushing-rolls. |
|
