US Patent: 190,411

Piston for Air and Gas Engines

Patentee:

George B. Brayton (exact or similar names) - Exeter, Rockingham County, NH

USPTO Classifications:

123/41.37

Tool Categories:

propulsion and energy : internal combustion engines : pistons

Assignees:

None

Manufacturer:

Brayton Petroleum Engine Co. - Boston, Suffolk County, MA

Witnesses:

John D. Thurston

Samuel P. Colt

Arthur L. Brown

Patent Dates:
Applied:	Oct. 19, 1876
Granted:	May 08, 1877

Patent Pictures:

USPTO (New site tip)
Google Patents
Report data errors or omissions to steward Joel Havens
"Vintage Machinery" entry for Brayton Petroleum Engine Co.

Description:

Abstract:

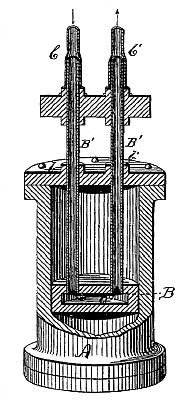

My invention consists in constructing the piston with a hollow chamber, which chamber is in combination with two "hollow piston- rods, so as to provide a means for the continuous circulation of a stream of cold water through the piston and its rods.

Claim:

The combination, with a piston having an interior chamber, of two separate hollow piston-rods, communicating directly with the chamber of the piston, one of which piston-rods is connected with a water-supply, whereby a continuous stream of water can flow through the piston for cooling the same.
