US Patent: 468,258
|
| Bottle-sealing device
|
|
Patentee:
|
|
| William Painter (exact or similar names) - Baltimore, MD |
|
|
Patent Dates:
|
| Applied: |
Jun. 16, 1890 |
| Granted: |
Feb. 02, 1892 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Jeff Joslin
|
|
Description: |

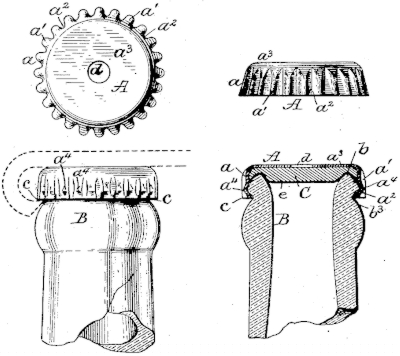

| This patent is for the original bottle-cap and the associated shape of bottle-top. A round metal disk is stamped with corrugations along its outer edge to create a rim extending down and leaving a flat central portion that is roughly the same size and shape as the top of the bottle. A machine is used to crimp the cap onto a bottle filled with, e.g., a carbonated beverage. Variations of this bottle-cap design are proposed for lower pressure applications such that the crimping forces are lower as not to damage the neck of a bottle intended for those lower pressures.Subsequent patents to the same inventor, relating to bottling machines and glycerin-impregnated cork material for use as a gasket, were assigned to the Crown Cork & Seal Co. of Baltimore, and they manufactured these bottle caps, and most likely licensed the patent to others as well.For the bottling machine associated with this bottle-cap, see patent 473,776. For a machine to manufacture these bottle caps, see patents 792,284 and 887,838. For other elements of this bottle-cap design see patents 468,226 and 468,259. For further improvements see patent 792,285. |
|
