US Patent: 2,005,976
|
| Ironing table
|
|
Patentee:
|
|
| Henry V. Keller (exact or similar names) - Minneapolis, MN |
|
|
Patent Dates:
|
| Applied: |
Feb. 09, 1931 |
| Granted: |
Jun. 25, 1935 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Jeff Joslin
|
|
Description: |

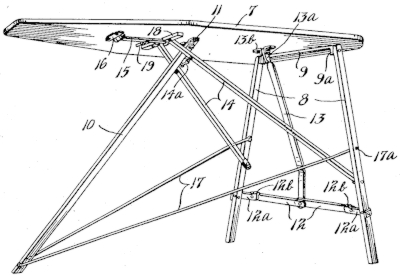

| The innovation is a system of rods between the legs such that all legs swing from folded to extended when any one leg is moved, and once moved fully into position the table is held rigidly by an over-center mechanism. Moving any one leg back into the folded position folds all three legs. The folded position is compact, and all parts of the mechanism are attached so that parts cannot be misplaced. It appears that the table, the legs and some of the support braces are wooden, while the trusses that support the single leg are made of steel rod. |
|
