US Patent: 154,526
|
| Improvement in Bevel Gages
|
|
Patentee:
|
|
| William E. Skinner (exact or similar names) - Milford, MI |
|
|
Patent Dates:
|
| Applied: |
May 05, 1873 |
| Granted: |
Aug. 25, 1874 |
|
Patent Pictures:
[
1 | 2 | 3
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Steve Gosselin
|
|
Description: |

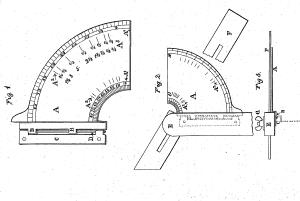

| Attachment to a bevel gage that allows the blade to be set to any angle through use of a quadrant attached to the bevel stock with a hinge to allow it to be moved out of the way once the angle is set. One of these appeared on ebay. The pictures are courtesy of the seller. |
|
