US Patent: 530,894
|
Try Square
|
Patentee:
|
|
Frank Houle (exact or similar names) - Chicago, IL |
|
Patent Dates:
|
Applied: |
Mar. 21, 1894 |
Granted: |
Dec. 11, 1894 |
Patent Pictures:
[
1 | 2 | 3 | 4 | 5
]
|
|
|
USPTO (New site tip) Google Patents
Report data errors or omissions to steward
Russ Allen.
|
Description: |

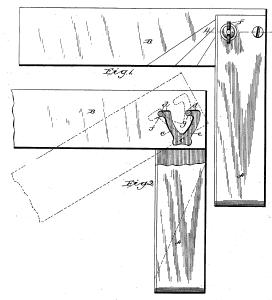

Blade cutout ("furcated opening") that allows the blade to be set at different angles and naturally locks at a right angle. Blade is secured in position by use of a lock nut but it is claimed that it is only needed to lock the blade at an angle other than 90 degrees.
Known example marked: "HOULE TRY SQUARE/& BEVEL/PAT'D DEC. 11, 1894" on the blade. |
|
