US Patent: 69,685
|
| Turning Lathe
|
|
Patentee:
|
|
| Benjamin M. Lewy (exact or similar names) - Montgomery, Montgomery County, AL |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Granted: |
Oct. 08, 1867 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Steve Gosselin
|
|
Description: |
| Munn & Co.- patent attorneys

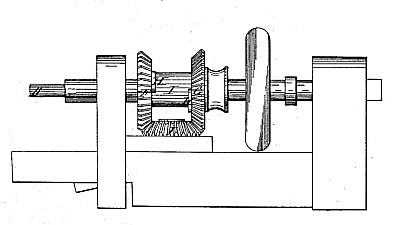

A, in the drawings, represents an. arbor turning in upright piece B to lathe-bed 0. This arbor, at its end D, forms one of the centre-pins to the lathe, and from the standard B is extended to another standard B of the bed C. F and G, two bevel gear-wheels on arbor A, between standards B and E. These wheels F and G are arranged to turn loosely on the arbor A, arid on their faces, toward each other, are both provided with a similar spring-pawl, H, pointing in the same direction, and engaging with a ratchet-wheel, I, fastened to arbor A, between the said wheels F and Or, Below the wheels F and Gr is a bevel pinion-wheel, J, arranged to loosely turn in block. K of the bed-piece C, as well as to be susceptible of being raised or lowered therein, for action in the gears F and G. L, a grooved pulley, fastened to outside face of wheel G, so as to turn as one. This pulley L is provided for receiving a tow to turn it, which tow being moved forward in the proper direction for the pawl of wheel G to engage with the ratchet I, such wheel G becomes the driver. At the same time the pinion J moves the wheel F with its pawl from the ratchet, when, drawing the tow back, the wheel F, with its pawl, becomes the driver, the wheel G moving its pawl from the ratchet, whereby through such drawing of the tow a rotary motion will be imparted to the arbor. 0, a balance-wheel fixed to arbor A to give steadiness of motion thereto. |
|
