US Patent: 173,255
|
| Axle-Nut Wrench
|
|
Patentee:
|
|
| Allen Bagley (exact or similar names) - Ypsilanti, MI |
| USPTO Classifications: |
| 81/76 |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
Jan. 07, 1876 |
| Granted: |
Feb. 08, 1876 |
|

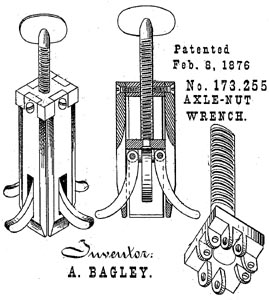

Patent Pictures:
|
|
Allen Bagley Pat. February 8, 1876 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Stan Schulz
|
|
Description: |
| The wrench clamps the axle-nut to the inside of the hub. Turning the wheel then removes or re-installs the axle-nut. Four pivoting arms moved in and out by a central thumb screw provide the clamping action, and force the socket against the axle nut. |
|
