US Patent: 505,013
|

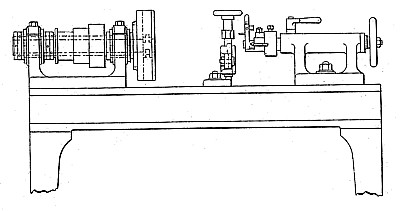

| Machine for Centering, Preparing, and Countersinking Bars, Studs, etc.
|
|
Patentee:
|
|
| William Webster (exact or similar names) - Leeds, York, England |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
Jun. 14, 1892 |
| Granted: |
Sep. 12, 1893 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
|
|
Description: |
| Pattison & Nesbitt - patent attorneys
My invention relates to improvements in machinery for centering, preparing and countersinking bars, studs and similar articles, previous to their being turned, more expeditiously, economically, and in a superior manner than at present. The objects of my invention are first, to fix the bars under treatment in a movable jawed chuck, on the end of a hollow rotating spindle of a fast headstock, secondly to cause the bar to be operated on to run truly, by means of a suitable rest, thirdly to drill the centers in the ends of such bars, studs and similar articles, by means of the point of a twist drill or a straight grooved, or spear shaped flat drill, and while the center is being drilled, to prepare or face the ends of such articles, by means of a fixed cutter; then to countersink the center by means of a smaller drill.
|
|
