US Patent: 1,685,604
|
| Hand Punch and the Like
|
|
Patentee:
|
|
| John Jensen (exact or similar names) - Rockford, Winnebago County, IL |
|
|
Patent Dates:
|
| Applied: |
Nov. 27, 1925 |
| Granted: |
Sep. 25, 1928 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
"Vintage Machinery" entry for Roper Whitney, Inc.
|
|
Description: |
| Claim:

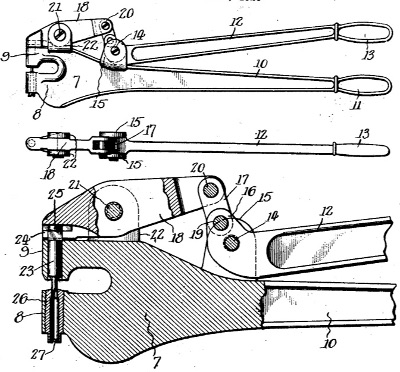

A tool of the class described comprising an arm having an enlarged bifurcated head at one endi, a working tool mounted in one of said bifurcations for sliding movement toward and from the other of said bifurcations, a pair of supports rigid with and spaced longitudinally along one side of said head, a working lever pivoted on the forward one of said supports and having one end engaging said tool for actuation thereof with the opposite end substantially overlying the other support, a bell crank lever pivoted on the rear one of said supports, and a link pivotally connecting the rear end of said working lev er and the forward end of said bell crank lever effecting a toggle joint therebetween, the pivotal points of said joint being substantially alined at the end of the working stroke in a line perpendicular to a line passing through the pivotal points on the working lever. |
|
