US Patent: 3,532,084
|
| Wheel Dresser
|
|
Patentee:
|
|
| Henry F. Swenson (exact or similar names) - Roseland, Essex County, NJ |
|
|
Patent Dates:
|
| Applied: |
Mar. 18, 1968 |
| Granted: |
Oct. 06, 1970 |
|
Patent Pictures:
[
1 | 2 | 3 | 4 | 5 | 6
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
"Vintage Machinery" entry for J&S Tool Co., Inc.
|
|
Description: |
| Abstract:

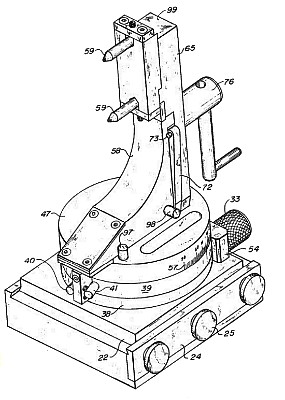

A wheel or tool dresser for precisely shaping grinding wheels with arcuate and angle shapes is provided with stops which may be set to precise limits to dress the wheel at determined angles. The dresser includes a base which carries nested upper and lower swivel rings and a brake or drag disposed to engage the inner surface of the lower ring. The pedestal is rotatably supported on a plurality of balls and may include sliding surfaces with cam portions which compensate for the arc of swing of the dressing point. A vibration dampening member in the form of a spring supported weight may be provided in the pedestal. The upper and lower swivel rings are clamped by means of a thumb screw and include stops which are engaged by adjustable screws carried by the pedestal, the adjusting of the screws providing a precise setting of the displacement of the pedestal.
Claim:
A wheel dresser for precisely shaping grinding wheels and the like by means of a retained dressing point such as a diamond, said dresser including: a. a base adapted for mounting on a grinding machine and the like; b. a dresser base and center member movably mounted on the base; c. a pair of nested swivel rings rotatably carried on the dresser base and center member, one of said swivel rings having a shouldered recess formed therein to provide a bearing seat for the other ring; d. a stop carried by each swivel ring and movable therewith; e. a swivel plate disposed above the dresser base and swivel rings, said swivel plate carrying a pedestal and a dressing point retaining means; f. a bearing carried in the dresser base and center member; g. a vertically disposed shaft carried by the bearing and retained in the swivel plate so as to permit the swivel plate to be rotated around the axis of the shaft; h. a stop pin carried by the swivel plate and disposed to lie between the stops carried by the swivel rings and to engage said stops to limit the movement of the swivel plate; i. a plunger means carried by the dresser base and center member, the plunger means movable by a spring carried in the dresser base with the plunger means disposed to engage one of the swivel rings to restrain the rotative movements of said one swivel ring while the other swivel ring is being moved to a setting position; and j. a locking means carried by the dresser base and disposed to be moved into engagement with at least one of the swivel rings to displace the rings into locking engagement with each other and the dresser base. |
|
