US Patent: 1,251,494
|
| Panoramic Camera
|
|
Patentee:
|
|
| William F. Folmer (exact or similar names) - Rochester, Monroe County, NY |
|
|
Patent Dates:
|
| Applied: |
Jul. 24, 1915 |
| Granted: |
Jan. 01, 1918 |
|

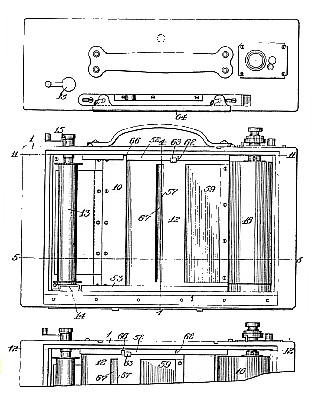

Patent Pictures:
[
1 | 2 | 3 | 4 | 5 | 6
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
|
|
Description: |
| Abstract:
My present invention relates to photography and more particularly to panoramic cameras of the type in which a sensitized strip is fed automatically across the focal plane or across the exposure aperture in timed relation to a sweeping movement of the lens across the subject through the rotation of the camera itself about a properly 20 located center and the invention has for its object the general improvement of a structure of this character with particular reference to the means whereby the view is chosen.
Claim:
In a panoramic camera, the combination with an exposure chamber and automatic film feeding devices, of a diaphragm at the back of the exposure chamber across which the film is fed by the feeding devices, said diaphragm being provided with a focusing screen and with an exposure aperture and adapted to be shifted so that said screen or aperture may be brought, selectively, into the optical axis of the camera. |
|
