US Patent: 357,628
|
Gage
Sheet-Metal Marking Gage
|
|
Patentee:
|
|
| Harry Price (exact or similar names) - Sauk Rapids, MN |
| USPTO Classifications: |
| 33/44 |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Applied: |
Sep. 04, 1886 |
| Granted: |
Feb. 15, 1887 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Ralph Brendler
|
|
Description: |
|

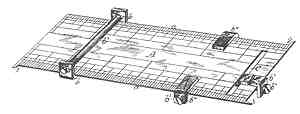

This is perhaps the simplest butt gage ever patented. It is a
simple piece of flat steel with sharp points at 3 corners, and
adjustable fences referencing each point. While it was certainly
compact, it would have been a real pain to use for scribing the
lines, as the fences were tiny and there was nothing to prevent
the tool from pivoting around them as it marked.
|
|
