US Patent: 674,029
|
| Igniter or Circuit Breaker
|
|
Patentee:
|
|
| William G. Stolz (exact or similar names) - Brooklyn, Kings County, NY |
|
|
Patent Dates:
|
| Applied: |
Feb. 05, 1901 |
| Granted: |
May 14, 1901 |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
"Vintage Machinery" entry for Conger Mfg. Co.
|
|
Description: |
| Abstract:

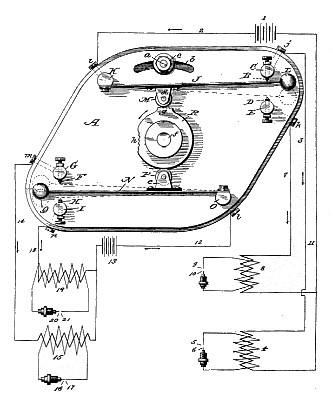

The present invention has reference to that class of electric igniting devices or circuit- breakers applied to explosive engines or motors; and the object thereof is to materially improve and simplify the operating mechanism, whereby two cylinders may be ignited with a single vibrating device, thus dispensing with the usual vibrating device on the primary induction-coil.
Claim:
In an igniting device, a contact point or points, a circuit-closer, and a rotatable wheel or disk having two corrugated or serrated surfaces extending respectively on a plane above and below the plane of the periphery of the wheel or disk, and means upon the circuit-closer to operate in Convection with the corrugated or serrated bearing-surfaces. |
|
