US Patent: 115,578
|
| Improvement in Water-Wheels
|
|
Patentee:
|
|
| Ashly D. Cole (exact or similar names) - Toronto, York County, ON Canada |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Granted: |
Jun. 06, 1871 |
|

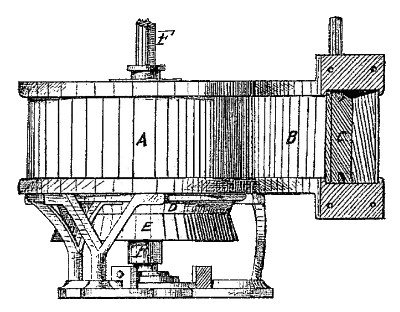

Patent Pictures:
[
1 | 2
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
"Vintage Machinery" entry for John Abell Engine & Machine Works
|
|
Description: |
| This patent was improved by Canadian Patent #CA-1807.
Abstract:
My invention has for its object to improve the construction of turbine water-wheels, to the end that they may be reduced in size, weight, and cost without lessening their power or efficiency. The invention consists in combining -with the stationary bottom of a cylindrical case, having straight inclined chutes, a revolving wheel provided with a beveled periphery and with curved buckets, which, in their upper half, are mainly perpendicular to a plane parallel to the chutes, and in their lower half curved downward nearly to a horizontal plane.
Claim:
he improved wheel formed by the straight inclined chute - plates E' and buckets G a, curved as shown and described, and secured in a ring beveled or flared outward at its lower edge, all arranged and operating as set forth.
|
|
