US Patent: 282,339
|
| Cane Mill
|
|
Patentee:
|
|
| Abraham J. Manny (exact or similar names) - St. Louis, MO |
|
|
Patent Dates:
|
| Applied: |
May 24, 1880 |
| Granted: |
Jul. 31, 1883 |
|

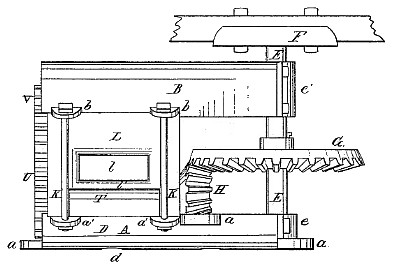

Patent Pictures:
[
1 | 2 | 3 | 4
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
|
|
Description: |
| Abstract:
My improvement relates to that form of cane-mills having horizontal pressure-rollers, and to cane-mills having a feed-roller, a crushing-roller, and a delivery-roller arranged horizontally in triangular form, by which the cane is twice subjected to pressure in one passage through the mill, first between the feed-roller and the crushing-roller, and, second, between the delivery - roller and the crushing- roller. In my improvement the feed-roller and delivery-roller are above instead of beneath the crushing-roller, thereby securing an angle for presentation of the cane at a more convenient height.
Claim:
In a cane-mill, the combination of three pressure-rollers-namely, a feed-roller, a crushing- roller, and a delivery- roller arranged horizontally and in triangular form, with the feed-roller and the delivery-roller above the crushing- roller. |
|
