US Patent: 12,555
|
| Revolver
|
|
Patentee:
|
|
| Frederick D. Newbury (exact or similar names) - Albany, Albany County, NY |
| Manufacturer: |
| Not known to have been produced |
|
|
Patent Dates:
|
| Granted: |
Mar. 20, 1855 |
|

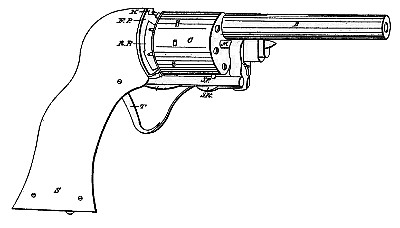

Patent Pictures:
[
1 | 2
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Joel Havens
|
|
Description: |
| This patent was improved by patent #AI126.
Abstract:
In its practical operation my pistol resembles Colt's pistol in having one barrel with a many-chambered cylinder for loading, each chamber being brought successively in line with the barrel. It also resembles Allen's pistol in having a many-chambered cylinder capable of being revolved and discharged by the action of the trigger; but differing from both of these firearms in important respects forming the matter of my invention.
Claim:
The ratchet-plate with its ratchet-indentations and its slot, in combination with the pin by which it connects with the cylinder, also the two stop-levers below the cylinder to regulate and secure the connection between the chambers of the cylinder and the barrel. |
|
