US Patent: 1,401,209
|
| TRAY
|
|
Patentee:
|
|
| James Arthur Thompson (exact or similar names) - Rushville, IL |
|
|
Patent Dates:
|
| Applied: |
Sep. 26, 1921 |
| Granted: |
Dec. 27, 1921 |
|
Patent Pictures:
|
|

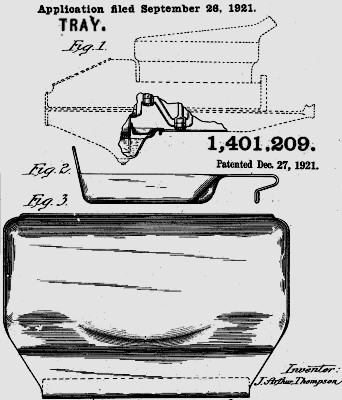

Patent 1,401,209 - edited drawing |
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Stan Schulz
GLADACRES FORD engine maintenance tools (FLICKR)
|
|
Description: |
| Tray designed to keep objects from falling into the crankshaft during work on the 4th connecting rod bearing in Model T FORD engines. Fig. 1 of the drawings shows the tray in position in the engine. The tray and a later evolution are shown in a 1928 article about GLADACRES tools for maintenance and repair of FORD engines.
Corresponding Canadian patent CA-225,641 was granted Nov. 7, 1922. |
|
