US Patent: 1,649,686

Combination Carpenter's Gauge

Patentee:

Howard T. Hamer (exact or similar names) - Narberth, PA

USPTO Classifications:

33/194, 33/197, 33/44

Tool Categories:

layout tools : squares

layout tools : marking gauges : butt gauges

Assignees:

None

Manufacturer:

Not known to have been produced

Witnesses:

Unknown

Patent Dates:
Applied:	Mar. 01, 1927
Granted:	Nov. 15, 1927

Patent Pictures:

USPTO (New site tip)
Google Patents
Report data errors or omissions to steward Ralph Brendler

Description:

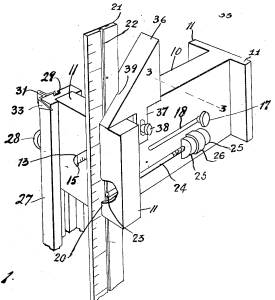

This is a fascinating combination tool, consisting of a fence for a standard combination square that also can act as a butt gage. It provides a plethora of marking points and adjustments, but it unfortunately would be quite unwieldy to use as a square with all of the knobs and points sticking out of the head.
