US Patent: 435,089
|
| Door-Hanging Gage
|
|
Patentee:
|
|
| Cereal Le Francois (exact or similar names) - Worcester, MA |
| USPTO Classifications: |
| 33/44 |
|
|
Patent Dates:
|
| Applied: |
Apr. 14, 1890 |
| Granted: |
Aug. 26, 1890 |
|
Patent Pictures:
[
1 | 2
]
|
|
|
USPTO (New site tip)
Google Patents
Report data errors or omissions to steward
Ralph Brendler
|
|
Description: |
|

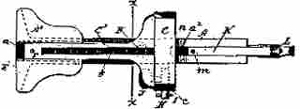

This is a fairly simple enhancement to the Marden Patent of 1872
(125,823), which adds a small scribing member in the side of the
head. This scriber is intended to mark the hinge depth.
There is also a second point on the far end of the arm, which
references off the back of the head. This allows this tool to
also be used as a standard marking gage.
|
|
